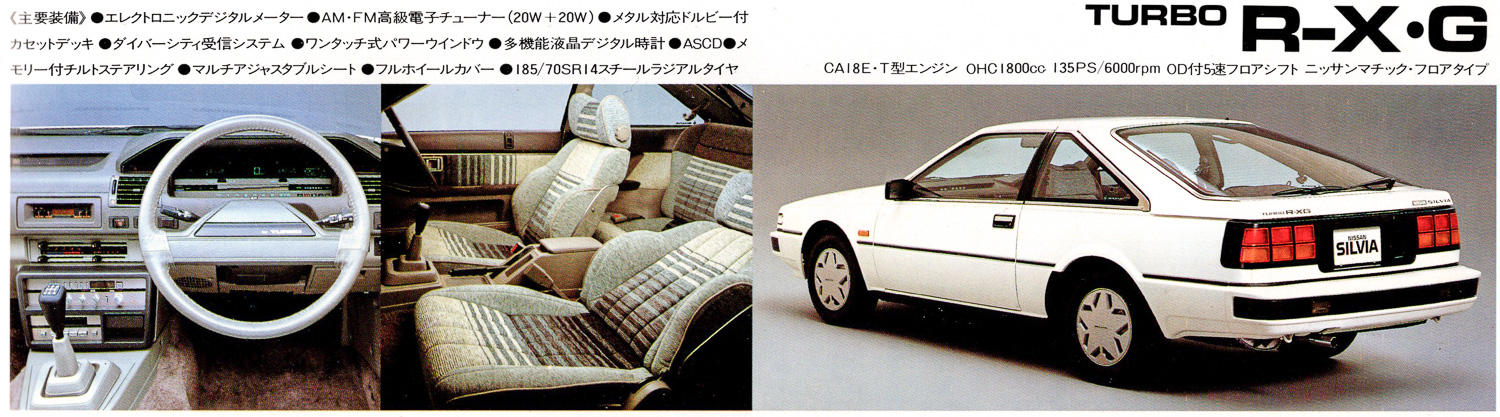

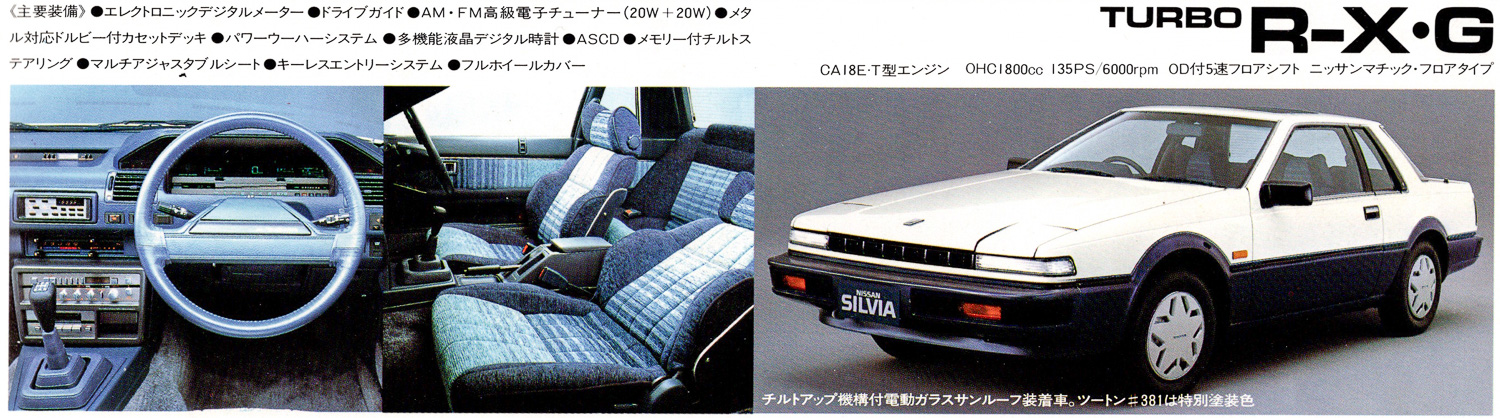

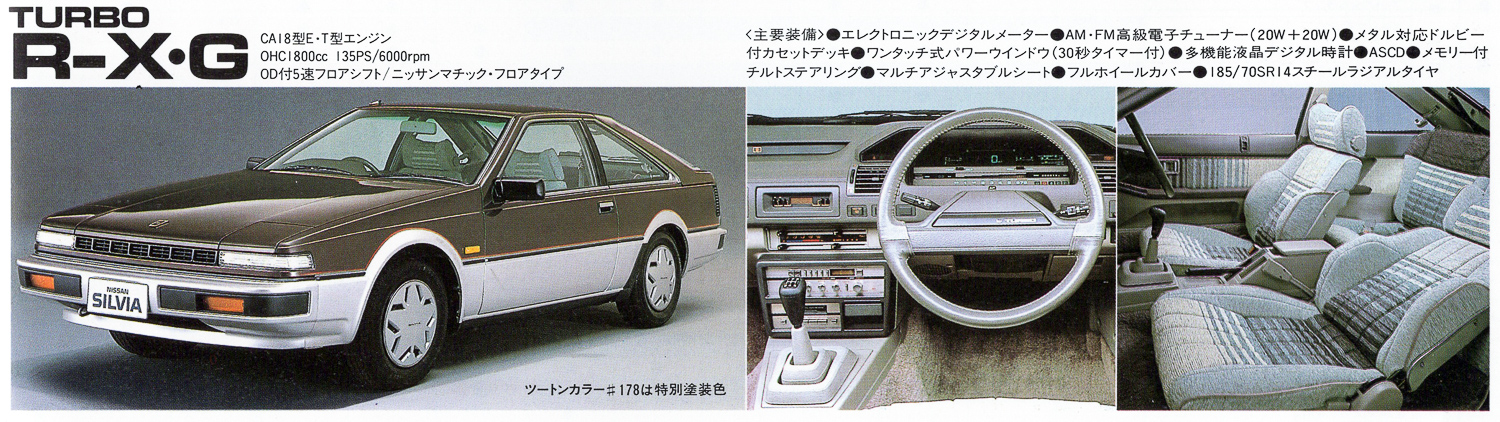

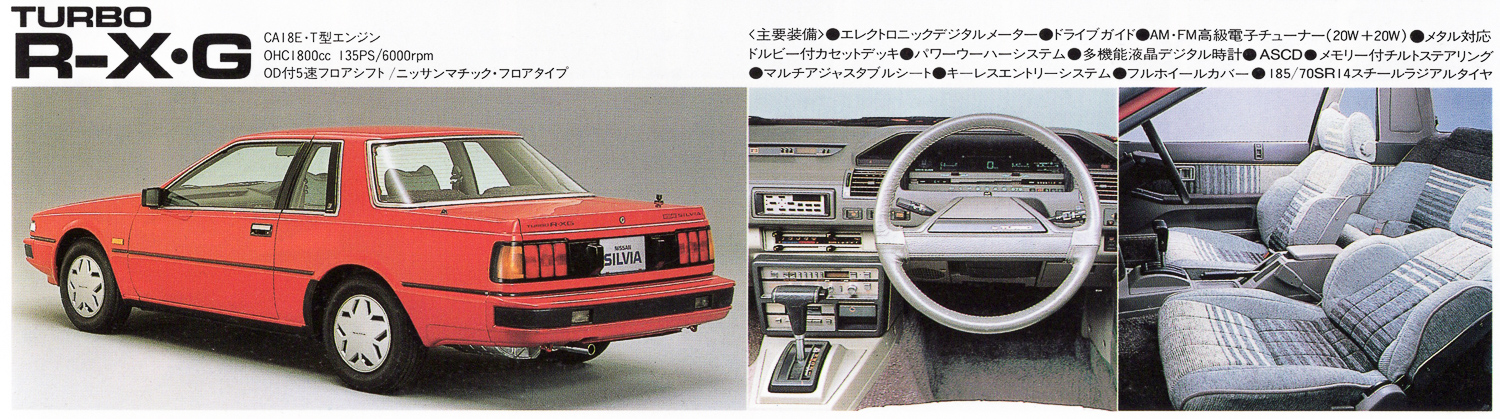

The Nissan Silvia Turbo R-X.G is the flagship luxury specification S12, loaded with features and technology not found on any other model in the S12 lineup. The R-X.G was available as a Coupe or Hatchback model shape and was equipped with the single cam CA18ET engine, ensuring the model didn't step on the toes of Nissan's flagship performance model, the Turbo RS-X. Nissan was proud of all the electronic additions to the R-X.G's luxury specification, proudly claiming a number of world firsts with their technology. The fitting of an electronic sunroof with tilt and retract was a first for such technology fitted to a production car in Japan. Retractable headlights fitted with a washer & wiper combination, an electric multi-adjustable seat, and the unique Power Woofer sound system were all claimed to be world firsts!

The R-X.G model was more prominently promoted and displayed under the Gazelle badge in Japan, attracting far more media and page space in Gazelle advertising material than the Silvia equivalent. Under the Silvia badge, the Turbo RS-X remained the flagship of the brand, the ultimate performance sports car. However under the Gazelle badge, the luxurious appeal and advanced technology of the R-X.G had it sharing the same spotlight as the high performance Turbo RS-X.

VIN Plate Identification Data
View S12 Identification Page

Carries the “J' designation in MODEL to identify Luxury Specification.

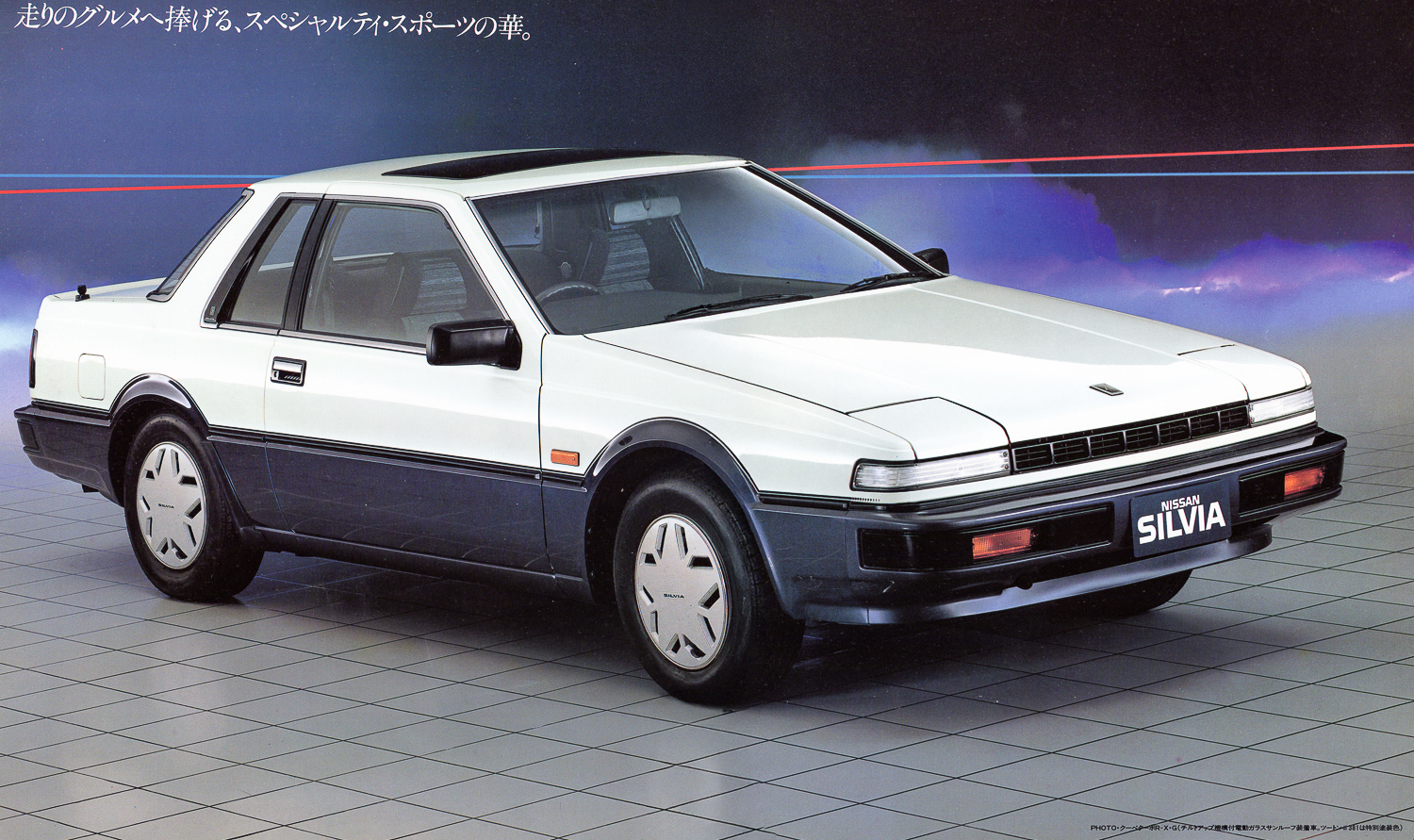

The flower of specialty sports, dedicated to gourmet driving.

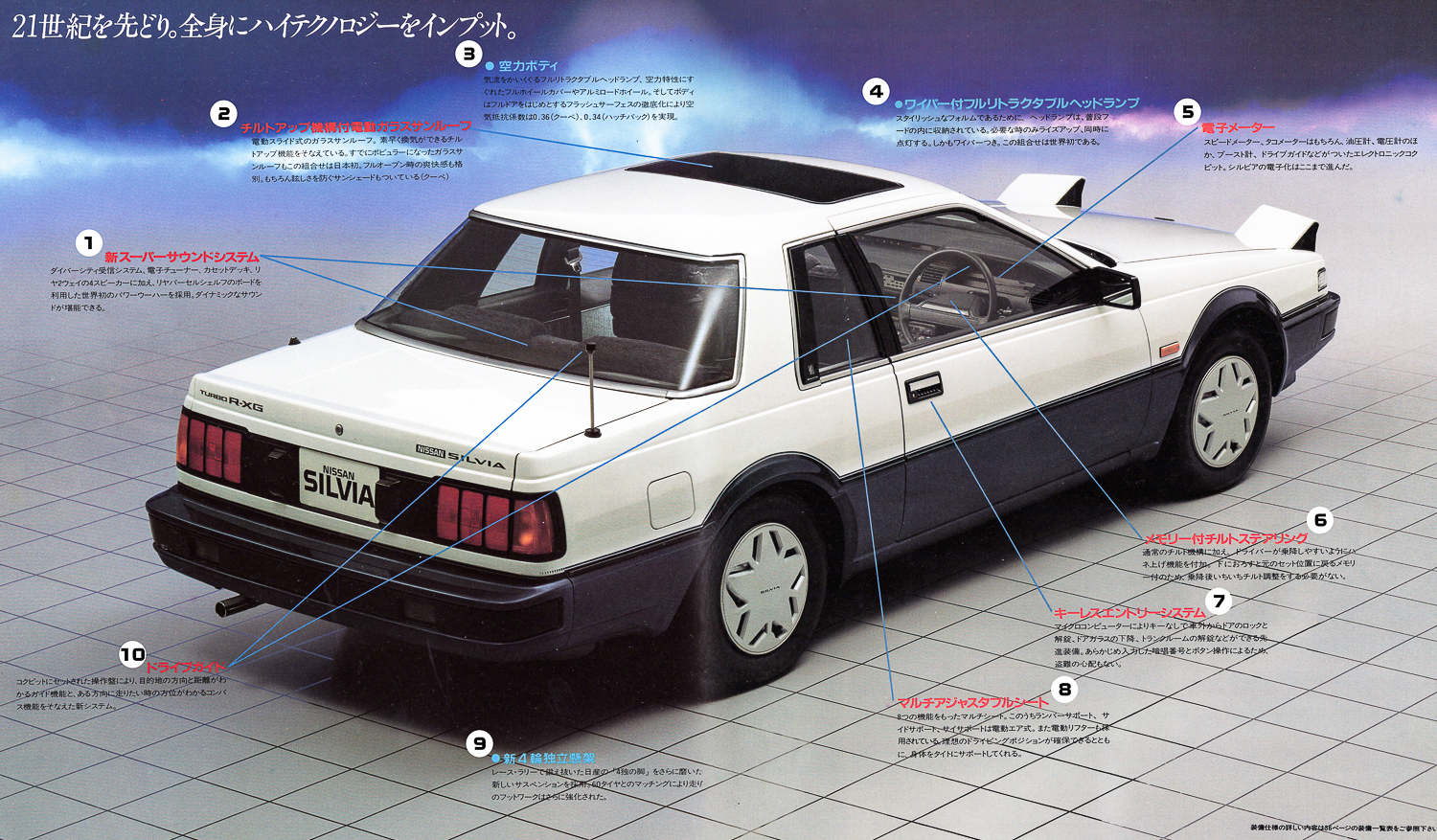

Ahead of the 21st century. High technology is input into the whole body.

1. New super sound system.
   I addition to a diversity receiving system, electronic tuner, cassette deck, and four rear two-way speakers, it also features the world's first power woofer that utilizes a pole on the rear parcel shelf, allowing you to enjoy dynamic sound.


2. Electric sunroof with tilt-up mechanism.
   An electrically operated sliding glass sunroof. It has a tilt-up function for quick ventilation, this combination is the first in Japan for the already popular glass sunroof. The feeling of freshness when fully open is exceptional. Of course, it also comes with a sunshade to prevent glare (Coupe).


3. Aerodynamic body.
   Fully retractable headlights that cut through the airflow, full wheel covers and aluminum road wheels with excellent aerodynamic properties, and the body's thorough use of flush surface, including full doors, achieves an air-resistance coefficient of 0.36 (Coupe) and 0.34 (Hatchback).


4. Fully retractable headlamps with wipers.
   To maintain its stylish form, the headlights are usually stored inside the hood. They only rise up and light up when necessary. They also come with wipers, this combination is a world first.


5. Electronic meter.
   The electronic cockpit is equipped with not only a speedometer and tachometer, but also an oil pressure gauge, a voltage gauge, a boost gauge, a drive guide, and more. This is the extent to which the Silvia has become so electronic.


6. Tilt steering with memory.
   In addition to the normal tilt mechanism, a lifting function has been added to make it easier for the driver to get in and out. When lowered, the memory returns to the original set position. This means there is no need to adjust the tilt after getting in and out.


7. Keyless entry system.
   This advanced equipment uses a microcomputer to lock and unlock the door, lower the door glass, and unlock the trunk from outside the vehicle without a key. All you need to do is enter a pre-entered code and press a button, so there's no need to worry about theft.


8. Multi-adjustable seat.
   This multi-seat has eight functions. Of these, the lumbar support, side support, and thigh support are electronically air-operated. It also features an electrically operated lifter. This allows you to find the ideal driving position while providing tight support for your body.


9. New 4-wheel independent suspension.
   The new suspension further refines Nissan's four-wheel drive system, which has been thoroughly honed through racing and rallies. Matched with the 60 tyres, the car's running performance has been further enhanced.


10. Drive guide.
    The new system features a control panel set in the cockpit that provides a guide function that tells the direction and distance to the destination, as well as a compass function that tells the direction when you want to drive in a certain direction.

The car is packed with cutting-edge technology, including cutting-edge car electronics.
Now, dreams, speed, and running - Turbo R-X.G

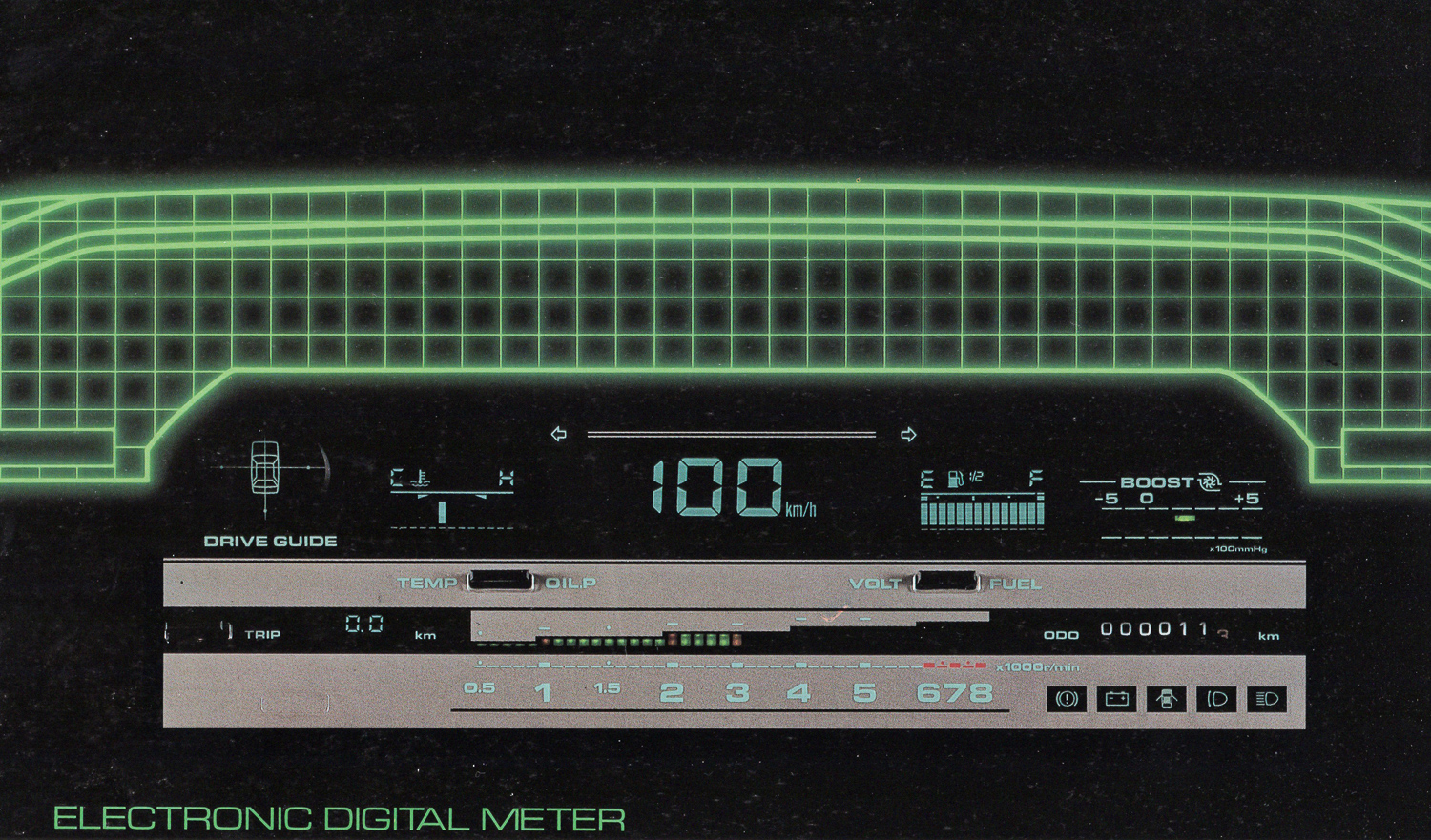

Electronic Digital Meter

This instrument panel speaks to the philosophy of a specialty car.

The driver who operates this cockpit will have two privileges: the thrill of driving that can only be experienced in a sports car, and the pride of having the luxurious advanced equipment of a specialty car. It is inevitable that you will need to be prepared to endure jealous stares.

The heart of the new Silvia is an electronic digital meter. The speedometer is in the center, with the water temperature gauge, oil pressure gauge, fuel gauge, and voltmeter on either side, and a tachometer with LEDs on the bottom. A boost gauge and drive guide are newly adopted.

The instrument panel is densely packed for easy viewing. Moreover, the layout is easy to see, and the green night lighting prevents the driver from feeling fatigued. There are also plenty of monitors and warning lights. You can accurately judge the condition of your car, which is a great relief.

The cutting edge of car electronics is brought together. Evolution always begins with the Silvia.

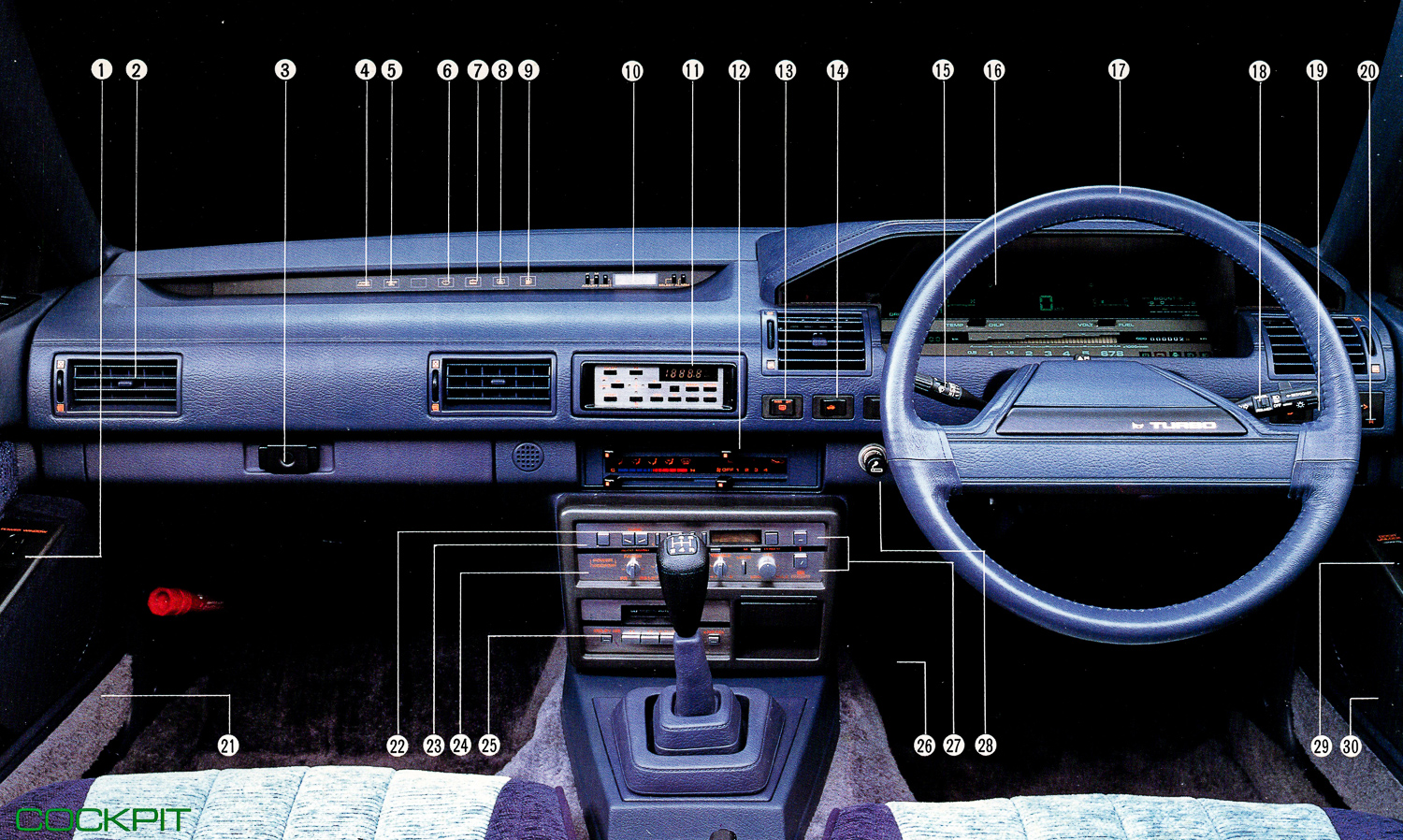

Cockpit

1. Power window switch
2. Passenger seat ventilation outlet
3. Glove box
4. ASCD cruise control monitor
5. ASCD switch monitor
6. Windshield washer fluid level warning light
7. Radiator fluid warning light
8. Rear defogger with timer operation warning light
9. Fuel level warning light
10. Multi-function LCD digital clock
11. Drive guide operation panel
12. Air conditioning control panel
13. Rear defogger switch with timer
14. Trunk opener switch
15. Stepless intermittent wiper switch
16. Electronic digital meter
17. Leather-wrapped sports steering wheel
18. ASCD control switch
19. Retractable headlamp switch
20. Electric remote control door mirror switch
21. Door pocket
22. OD 5-speed floor shift
23. Power woofer switch
24. AM/FM high-end electronic tuner
25. Cassette deck
26. Drivers seat footrest
27. Power antenna switch
28. Cigarette lighter switch
29. Power window switch
30. Door pocket

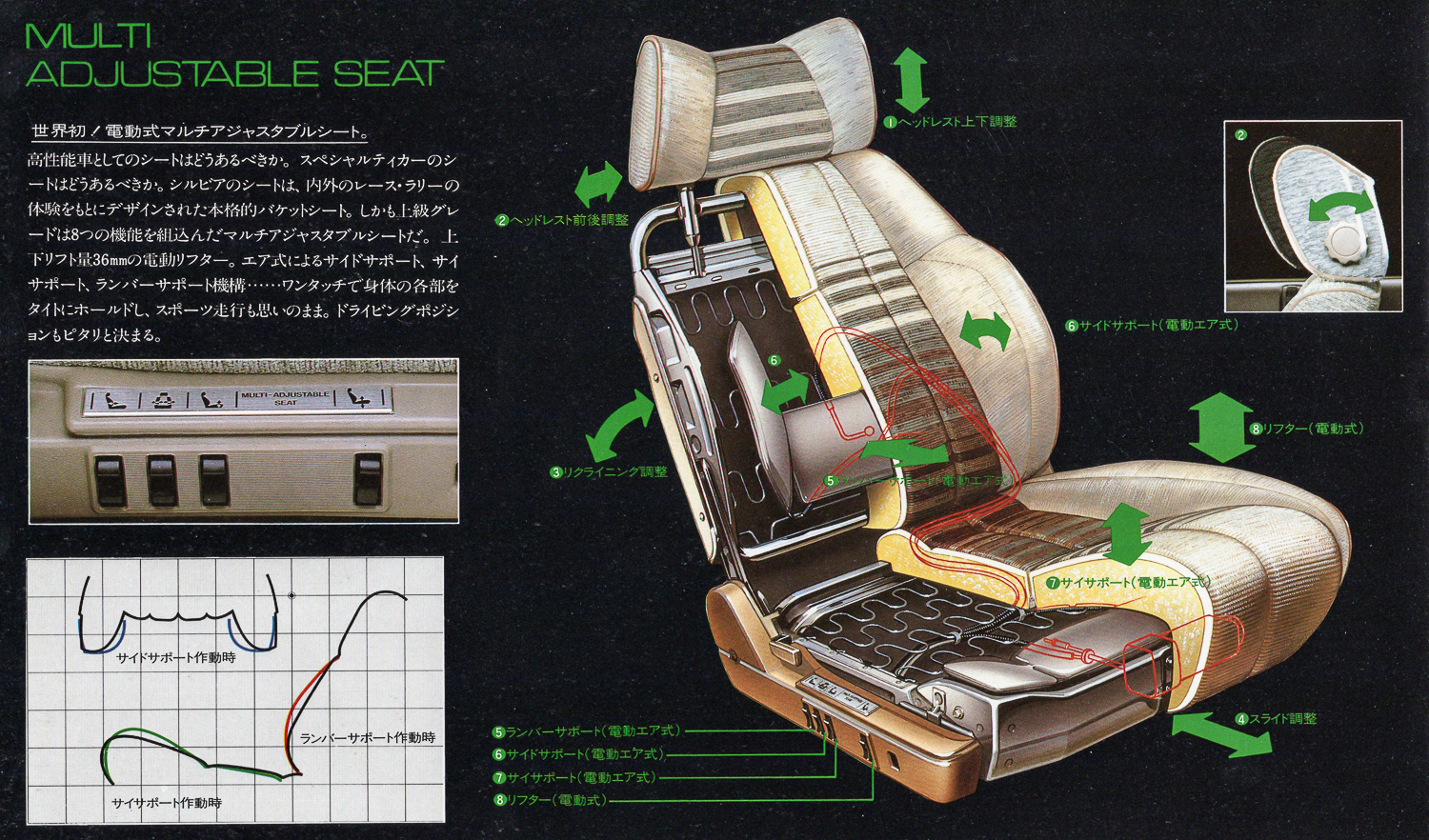

Multi Adjustable Seat

The driving position is impeccable. Now, the Sporty Zone has also achieved comfort.

The world's first! Electric multi-adjustable seat.

What should seats be like in a high-performance car? What should seats be like in a specialty car? The Silvia's seats are full-fledged bucket seats designed based on experience from domestic and international races and rallies. What's more, the higher-grade models are multi-adjustable seats with eight built-in functions. An electric lifter with a 36mm upper drift. Air-operated side support, thigh support, and lumbar support mechanisms… all parts of the body are tightly held in place with just one touch, allowing for sporty driving to your heart's content. The driving position is also perfectly determined.

1. Headrest vertical adjustment
2. Headrest front and rear adjustment
3. Reclining adjustment
4. Slide adjustment
5. Lumbar support (electric air type)
6. Side support (electric air type)
7. Thigh support (electric air type)
8. Lifter (electric)

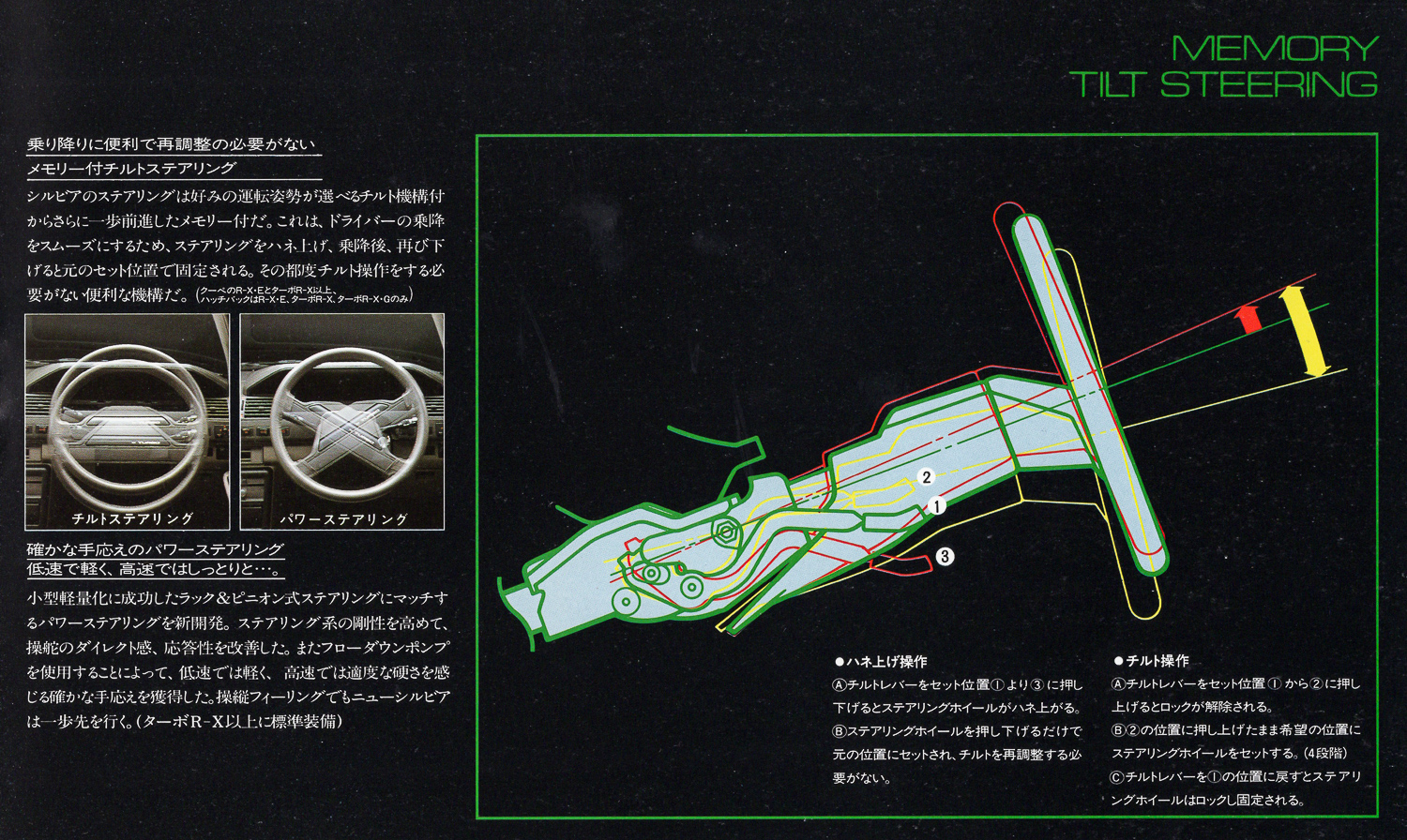

Memory Tilt Steering

Easy to get in and out, no readjustment required.
Tilt steering with memory.

The Silvia's steering wheel is equipped with a memory function, which goes one step further than the tilt function that allows you to select your preferred driving position. This allows the driver to get in and out of the car more smoothly by flipping the steering wheel up, getting in and out, and then lowering it again, and it will be fixed in the original set position. There is no need to tilt it each time.

Power steering with solid response: light at low speeds, smooth at high speeds.

A new power steering system has been developed to match the compact and lightweight rack-and-pinion steering. The rigidity of the steering system has been increased, improving the directness and responsiveness of steering. The use of a flow-down pump has also resulted in a solid feel that is light at low speeds and just the right amount of firmness at high speeds. The new Silvia is also one step ahead in terms of steering feel. (Standard equipment on Turbo R-X and above)

Hopping operation

A. When the tilt lever is pushed down from set position 1 to 3, the steering wheel will pop up. B. Simply push down on the steering wheel to return it to its original position, eliminating the need to readjust the tilt.

Tilt operation

A. Push the tilt lever up from set position 1 to 2 to release the lock. B. 2. While pushing it up, set the steering wheel to the desired position. (4 steps) C. When the tilt lever is returned to position 1, the steering wheel will be locked and fixed.

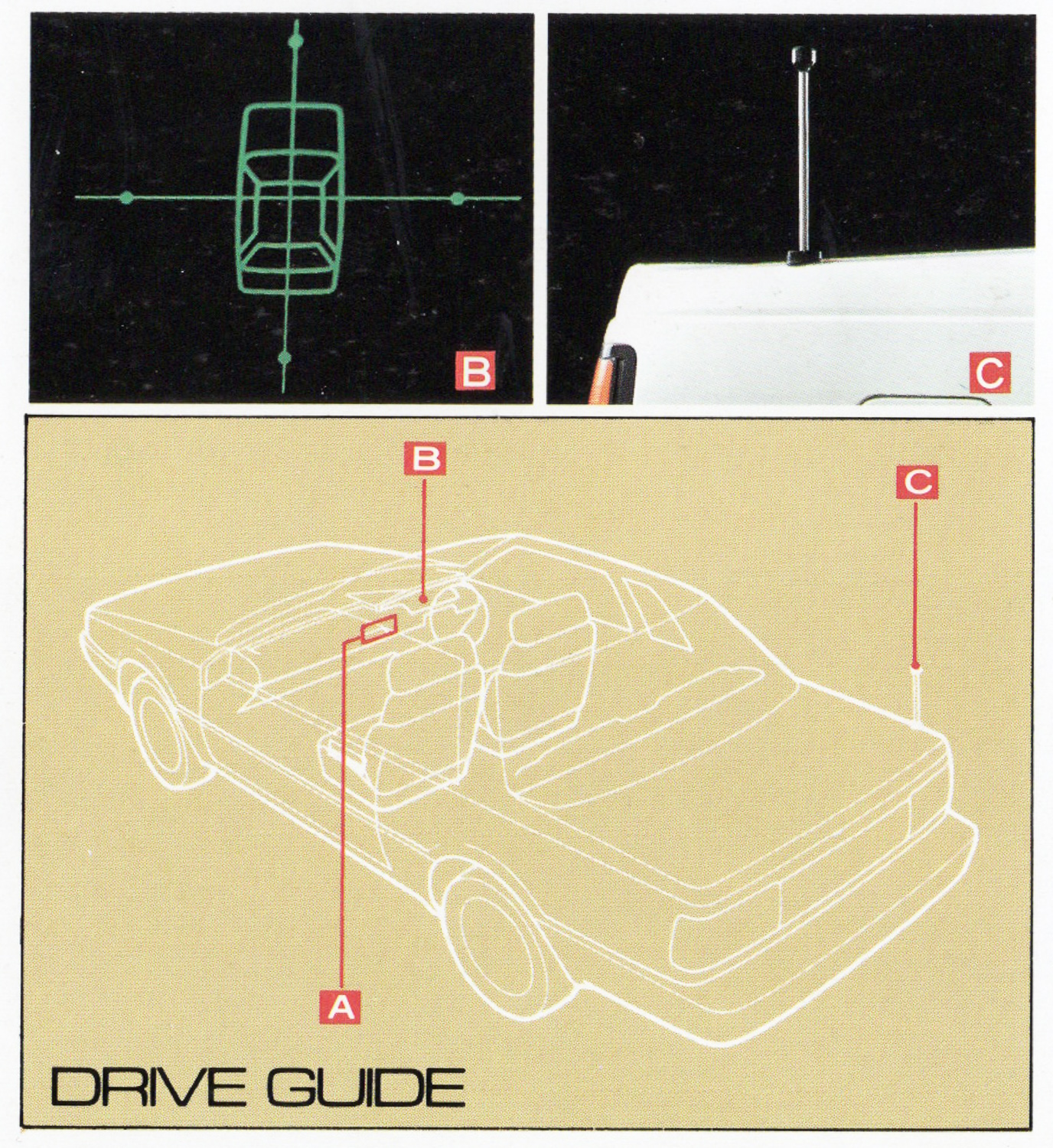

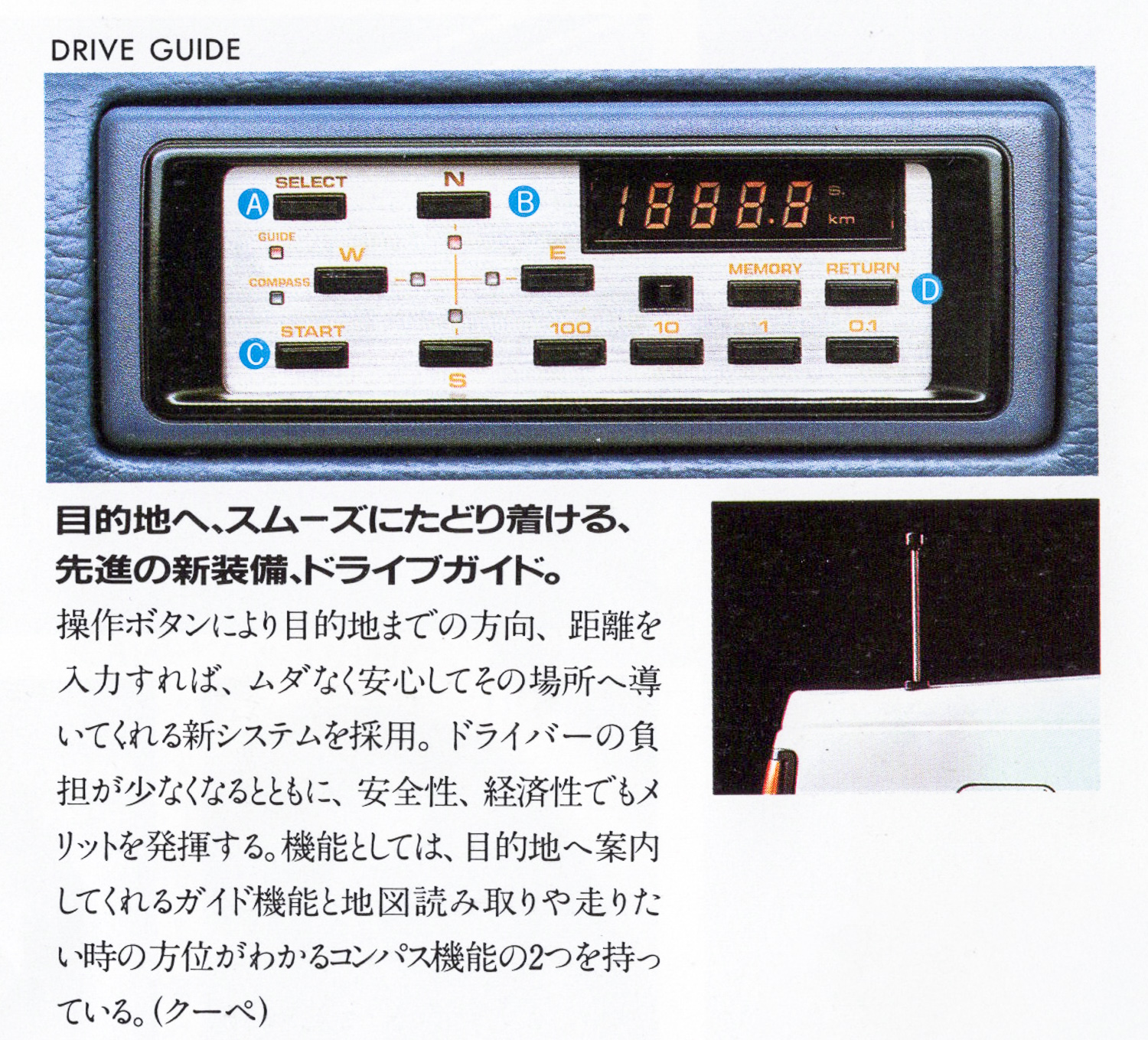

Drive Guide

Drive Guide is an advanced new feature that helps you reach your destination smoothly.

The new system uses operation buttons to input the direction and distance to your destination, and guides you there safely and efficiently. This reduces the burden on the driver and also offers safety and economic benefits. It has two functions: a guide function that guides you to your destination, and a compass function that reads maps and tells you the direction you want to drive. (Coupe)

A. Guide function, compass function selection switch
B. Display shows distance when inputting, and absolute distance to destination when driving.
Switch to start C calculation
D. When the initial input value is stored, this switch starts the calculation for returning from the destination to the starting point.

A. Drive guide control panel
B. Drive guide display (inside the digital meter)
C. drive guide antenna

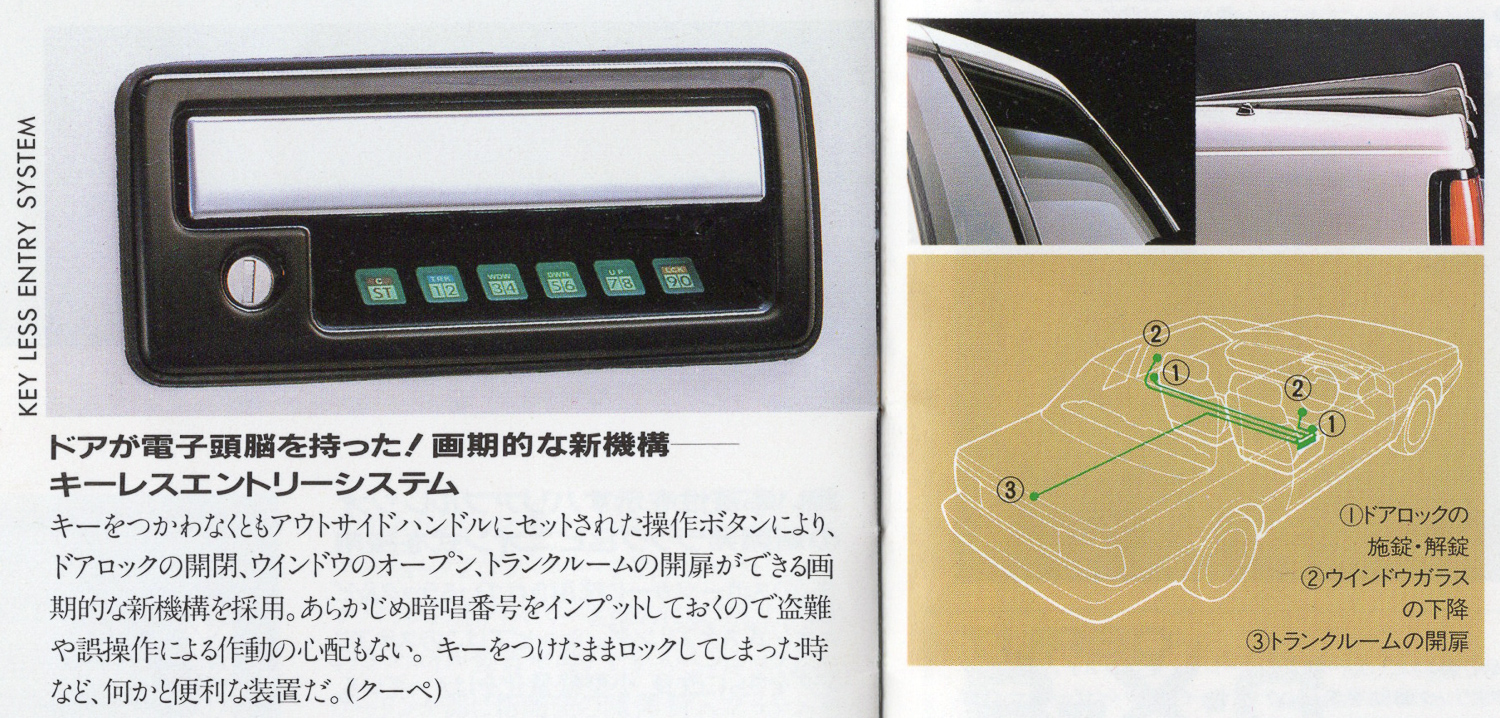

Keyless Entry System

Doors with electronic brains! A revolutionary new mechanism.

keyless entry system.

This innovative new mechanism allows you to lock and unlock the doors, open the windows, and open the trunk without using a key, using the operation buttons set on the outside handle. Since you input the code beforehand, there is no need to worry about theft or accidental operation. This is a very convenient device when you accidentally lock the car with the key still inside. (Coupe)

1. Door lock/unlock
2. Window glass control
3. Opening the trunk

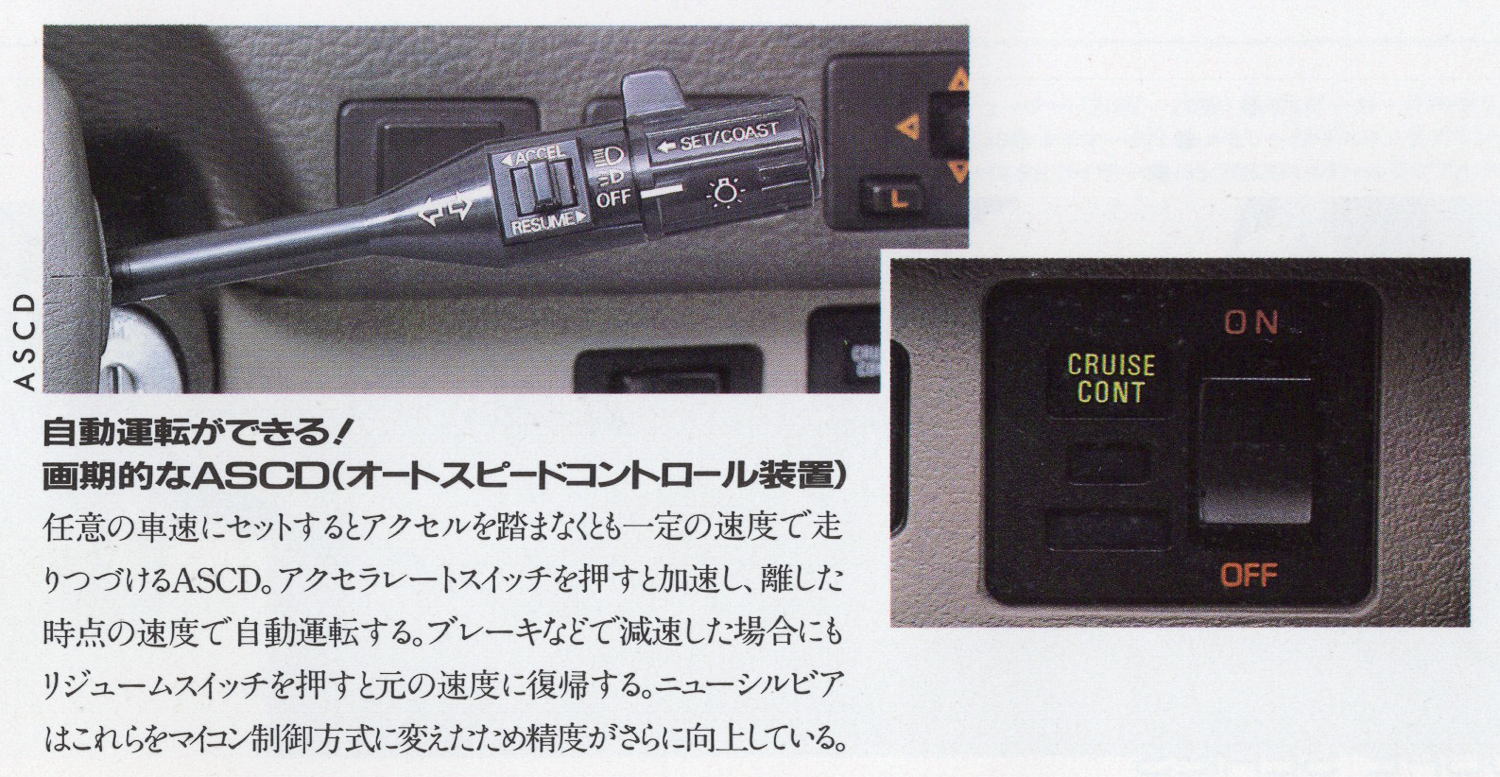

ASCD

Can drive automatically!

Revolutionary ASCD (Auto Speed ​​Control Device)

Once you set the desired vehicle speed, the ASCD will continue to drive at a constant speed even without pressing the accelerator. Pressing the accelerate switch will accelerate the vehicle and automatically drive at the speed at which it was when you released the switch. Even if the vehicle slows down due to braking or other reasons, pressing the resume switch will return the vehicle to its original speed. The new Silvia has been converted to a microcomputer-controlled system, further improving accuracy.

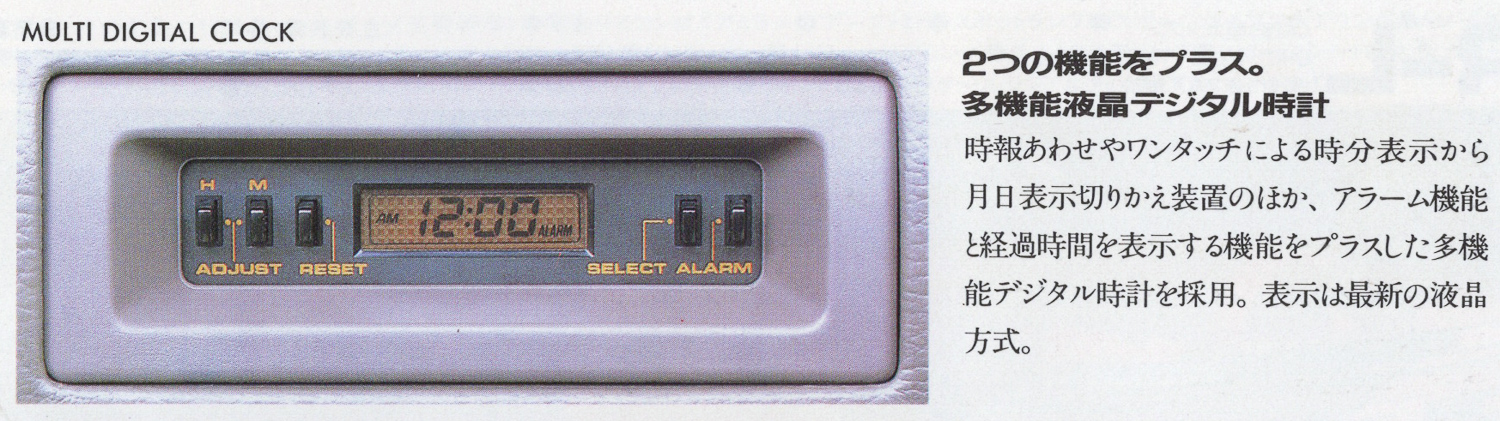

Multi Digital Clock

Two additional functions: Multi-function LCD digital clock.

This multi-function digital clock features a time signal, one-touch switching between hour and minute display and month and date display, as well as an alarm function and elapsed time display.The display is the latest LCD system.

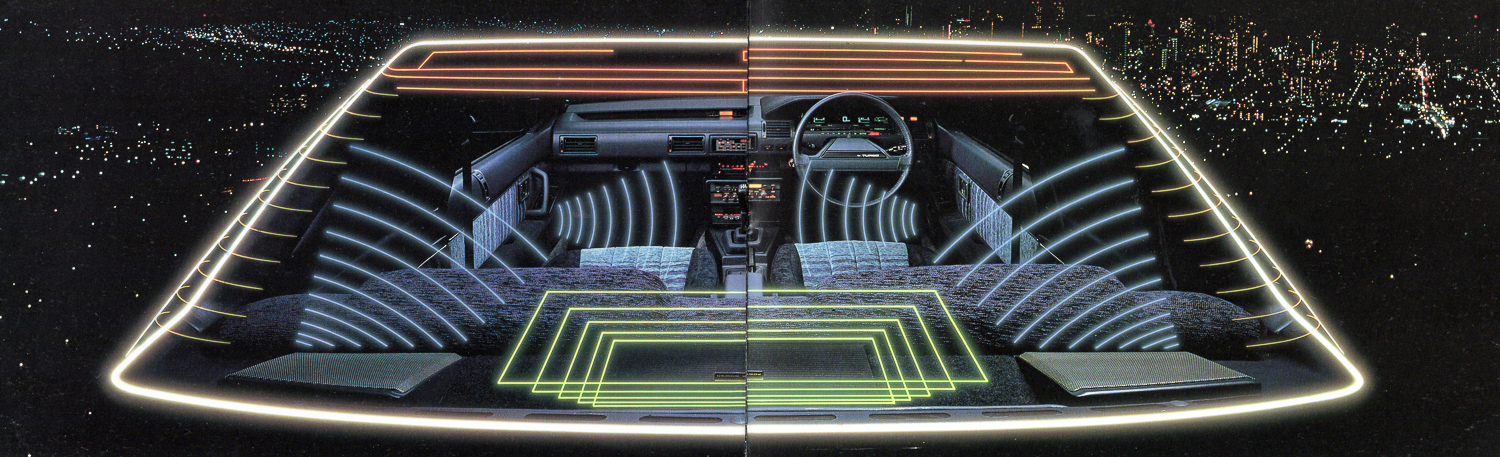

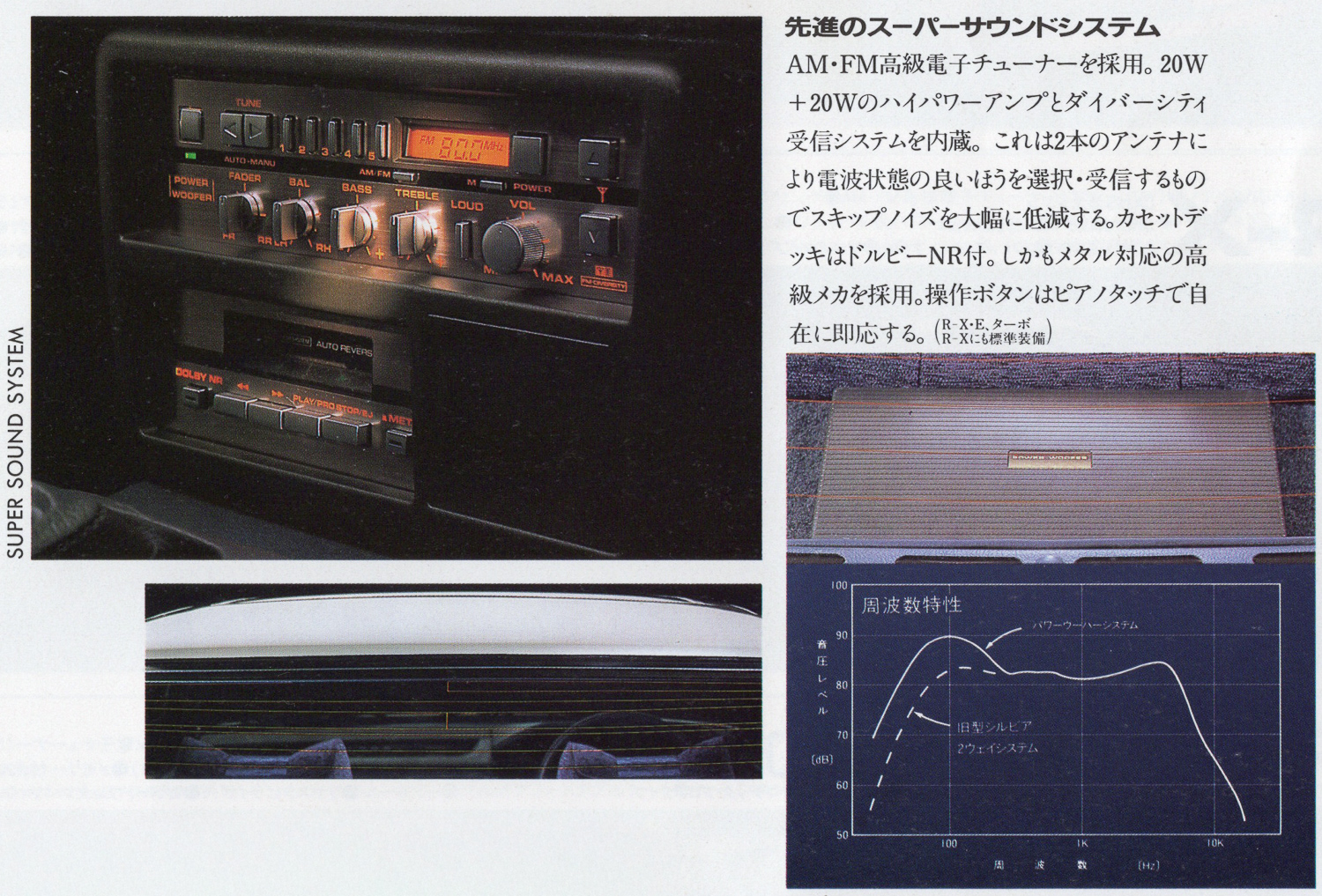

Super Sound System

Advanced super sound system

Equipped with a high-quality AM/FM electronic tuner.

It has a built-in 20W+20W high-power amplifier and a diversity reception system. This system selects and receives the signal from two antennas with the better signal quality, significantly reducing skip noise. The cassette deck is equipped with Dolby NR. It also uses a high-quality mechanism that is compatible with metal. The operation buttons respond freely and instantly to piano touch.

Powerful bass – power woofer.

In addition to the four speakers, the coupe is equipped with the world's first power woofer system, which uses part of the rear parcel board as a diaphragm and is a speaker dedicated to bass sounds. This reproduces powerful bass sounds equivalent to those of a 20cm diameter speaker without being disturbed by noise inside the car. It is most effective for music with a strong rhythm and beat. It is one of the most luxurious sound systems.

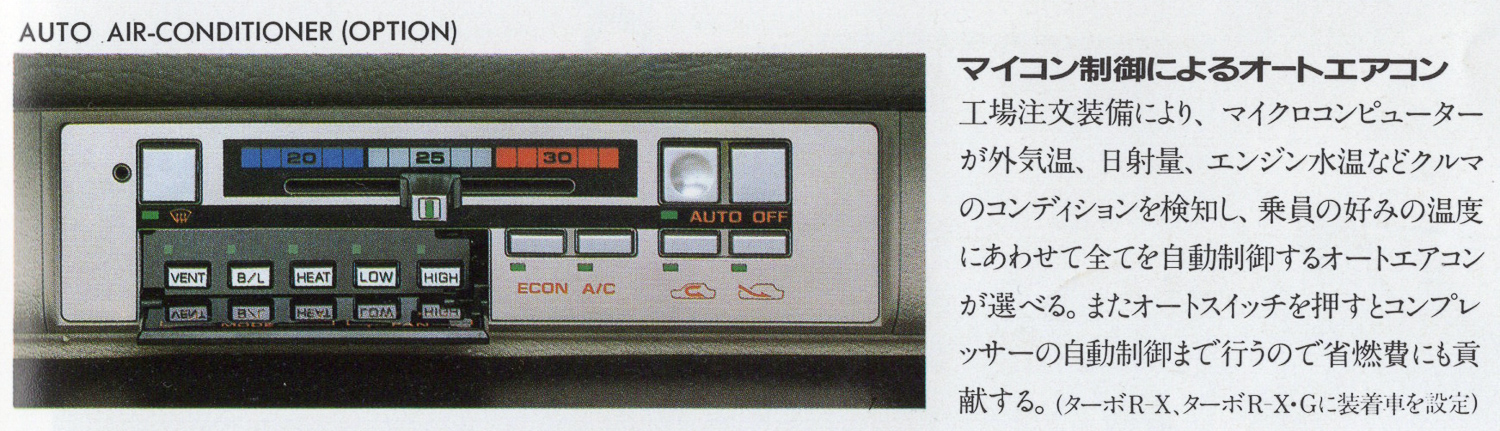

Auto Air Conditioner (Option)

Microcomputer-controlled automatic air conditioner.

By ordering from the factory, you can choose an automatic air conditioning system in which a microcomputer detects the vehicle's conditions, such as outside temperature, solar radiation, and engine water temperature, and automatically controls everything to suit the passenger's preferred temperature. Pressing the auto switch also automatically controls the compressor, contributing to fuel savings. (Available on Turbo R-X and Turbo R-X・G models.)

The Turbo R-X.G is the highest optioned model in the S12 range. View the options table at the following link…
